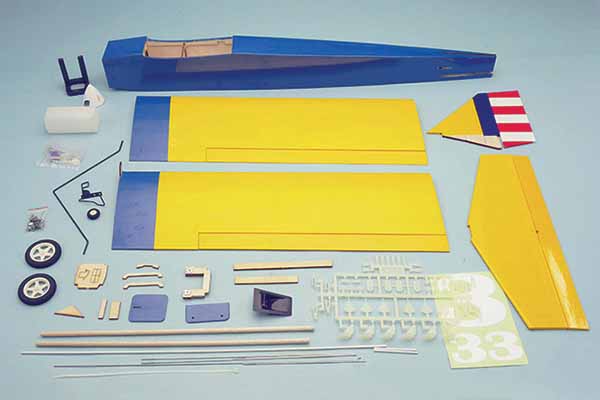

Main set contents:
· Valsalive group film finished wings
· Valsalive set film finished tail fin
· Wooden film pasted finished fuselage
· Glass nylon engine mount
· 51 mm AB spinner
· 180 ° fuel tank
· A set of rods for linkage
· Main gear
· Sponge Tire
· Plastic control horn
· Sticker (Number is contained randomly)
· Japanese assembly instructions
- This product is ARF machine completed film paste. Completion is necessary such as joining of main wing, engine, loading of mechanism etc.
- The covering film produces Talmi and wrinkle from its material. In such a case, you can remove it by shrinking the film by applying heat with a model iron.
- The content of the set, design, colors etc are subject to change without prior notice.
- Standard servo refers to a servo with a width of 20 mm and a length of 40 mm and a torque of 3.5 kg or more.
- When choosing electric power for power source, you can easily do by using ePack25.
Main preparations separately:
· Propo transceiver for airplane
· Servo standard servo x 3
· Mini servo Tahmazo TS-1034 (48544) x 2 pieces
· Engine 2 cycles 25 classes
· Propeller APC propeller 9 x 5 (46068) 2 cycles 25
· Extension cord PILOT ST 200 mm (47499) x 2 PILOT ST 100 mm (47498) x 2 pcs
· Instant adhesives OK Bond HW (43010), FX (43451)
· Epoxy adhesive (30 minutes curing type)
· Silicone adhesive
· PILOT sanding block (25042)
· Other, general tools (cutter knives, drivers, etc.)
· Full length Length: 1150 mm
· Full width Wing Span: 1260 mm
· Main wing area Wing Area: 25.2 dm 2
· Overall Weight Weight: 1350-1450 g
· Motor Motor: Tahmazo ER-281411 dBM (48802)
· Engine Engine: 2C25 class
· RC Mechanical Radio: AL (2), RD, EV, TH or ESC
· Difficulty of flight: For intermediate level
· Completion state of the airframe: Film pasting completed
· Power unit that can be mounted: Electric motor / Glow engine
